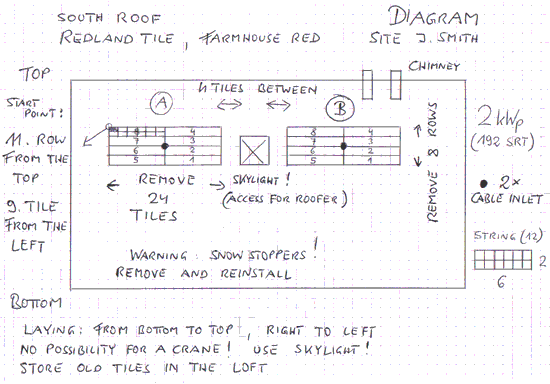

Example roofers diagram for a 2 kWp set.

Below are installation examples of 1 String (12 SRT)

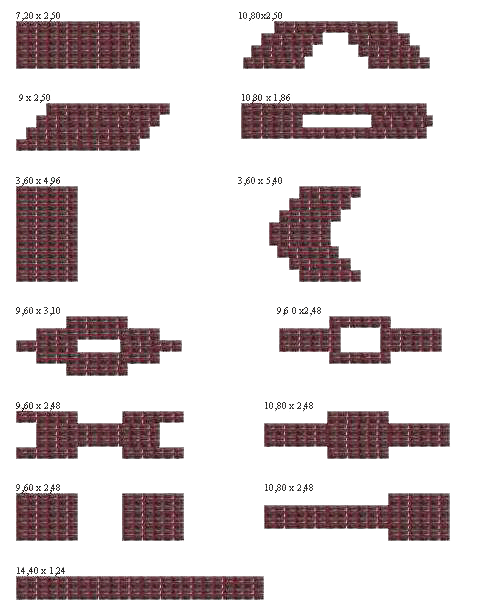

Possible installation variations of a 1 kWp set (8x12=96 SRT)

Width and height (m)
model: Frankfurt style
